4-794618-2
Manufacturer:
TE Connectivity
Mfr.Part #:
4-794618-2
Datasheet:
Description:

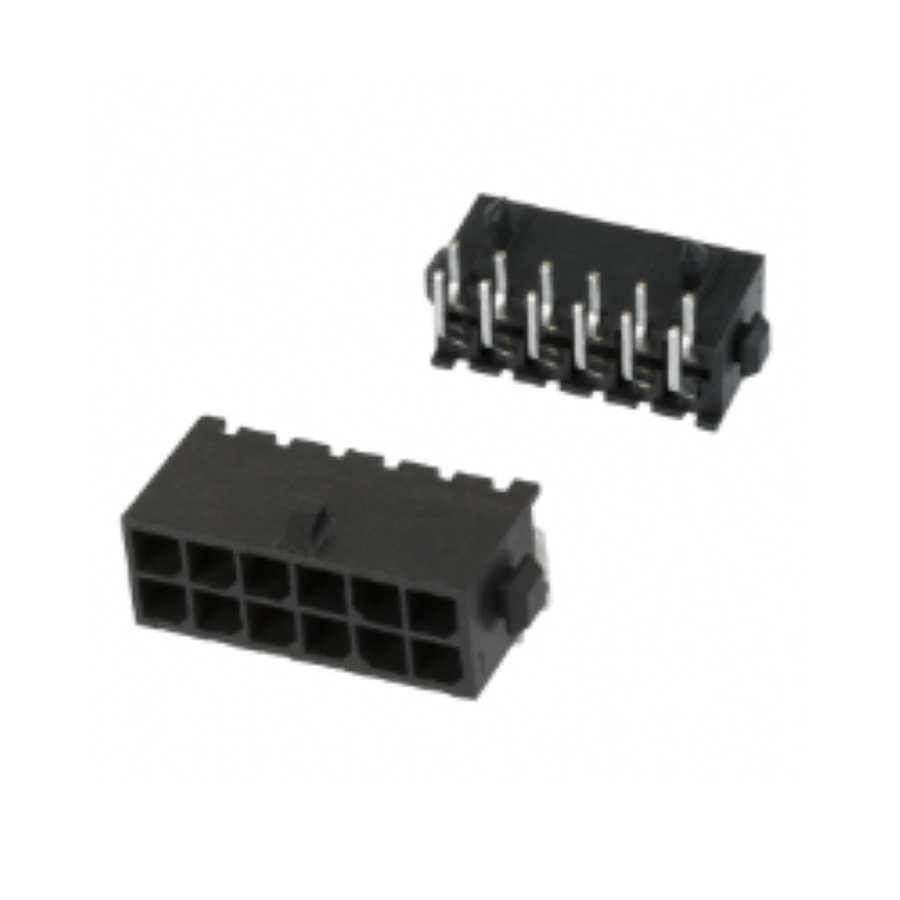

Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:2.9972 mm
| Parameter | Value |
|---|---|
| Length | 22 mm |
| Width | 10.88 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 11.92 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 11.92 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.9972 mm |
| Number of Terminals | 12 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male Pin |
| Number of Contacts | 12 |
| ELV | Compliant |
| Number of Poles | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| Plating | Tin |
| PCB Thickness | 1.58 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 12 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 3937
Distributors
pcbx
pcbxUnit Price$1.58956
Ext.Price$1.58956
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58956 | $1.58956 |
| 10 | $1.35147 | $13.51470 |
| 25 | $1.27918 | $31.97950 |
| 50 | $1.21076 | $60.53800 |
| 100 | $1.14600 | $114.60000 |
| 300 | $1.08470 | $325.41000 |
| 500 | $1.02668 | $513.34000 |
| 1000 | $0.97177 | $971.77000 |
| 3000 | $0.91979 | $2759.37000 |
| 5000 | $0.87057 | $4352.85000 |
